55inch 300nit Smart Indoor kiosk

Features Gallery Specs Download

Enquire to Buy

BBC5522B-AA-03

55inch 300nit Smart Indoor kiosk

Rating

43"55"65"

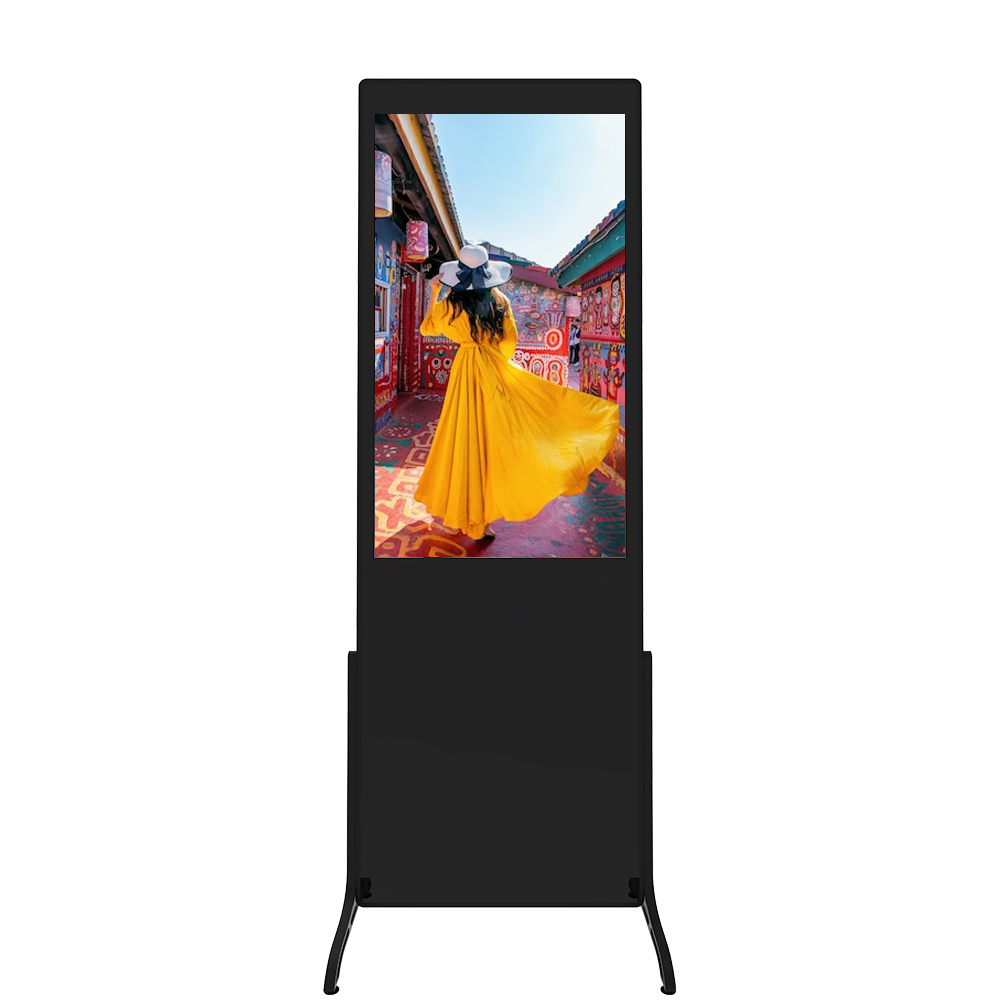

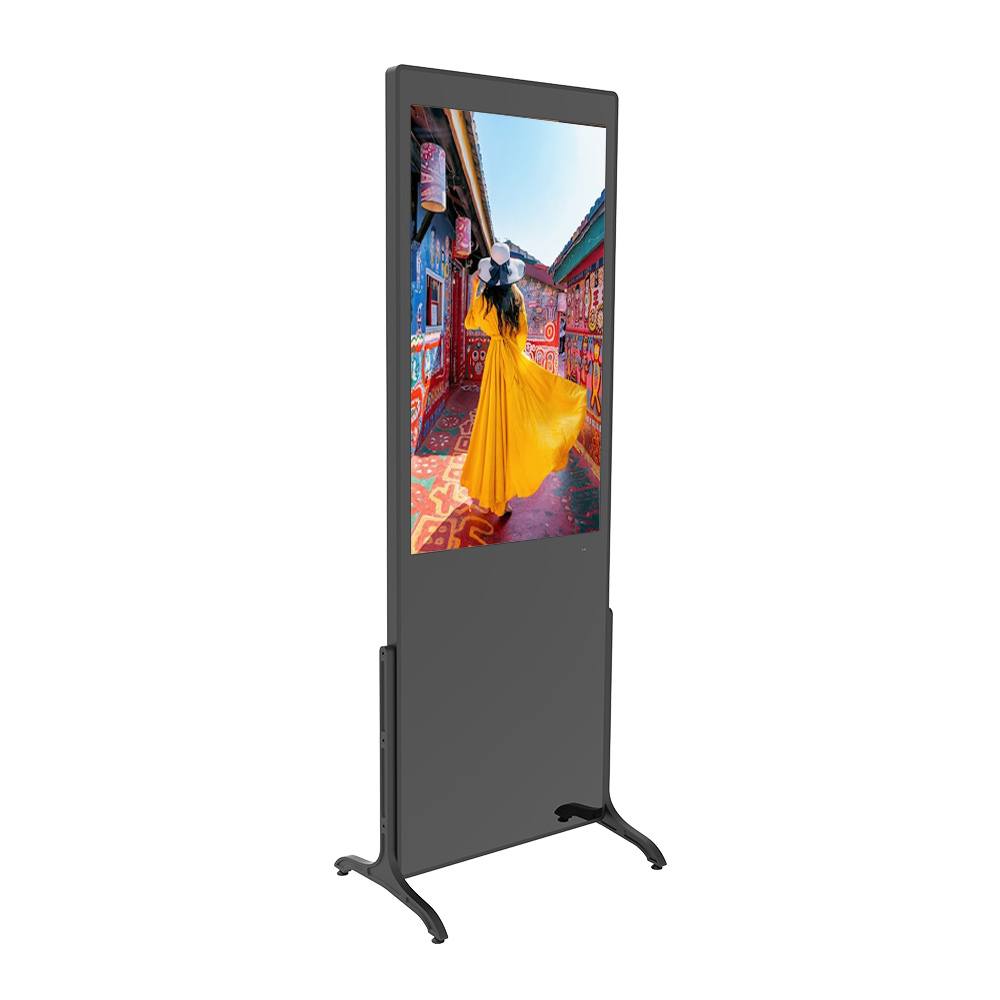

Geephon Smart Indoor kiosk

Geephon’s BBC series of smart kiosk is ideal for retail products and information display. With the standing and slim design feature, it allows you to place your Ads and information at various places in the shop without any installation.

GVisionOptimal Visual Picture Quality

The series is equipped with the high performance image processor. Resolution 2K/4K guarantees true color expression. High resolution is essential for reading text up close andalso produces the best results when displaying video.

And support picture quality adjustment and white balance adjustment functions.

GComponent Lightweight Design

Modularization design of components for easy maintenance, easy field removal and replacement ofdamaged devices.

Physics Tempered Glass Surface

Equipped with physics tempered glass toprotect the screen.

GStable Bracket

Aluminum alloy bracket, one-piece die-cast shell design Provides excellent support, sturdiness and stability.

Built-in Speakers

Built-in high-quality speakers deliver great sound while experiencing

GPlay Convenient U-disk

Automatic content copying, loop playback.

Insert the U disk, automatically copy the contents of the U-disk to the device, and play it automatically. Automatic playback is realized when booted, no additional operation is required.

Fail OverSystem

The Fail Overrm system can automatically start playing the pictures and videos pre-setting on the device,when the HDMl input fails.

So that the machine can continue to display stably then the Fail Over system will automatically report to the monitoring system, then the team can maintain the device.Make sure our displays are never down.

All-in-One Signage Solution

Support CMS & MSC
Support SDK/Open API
Support OTA update / upgrade function

Gallery

1 / 1

All Spec Print

General

Screen Size
55inch
Screen Active Area
1209.6 x 680.4
Resolution
3840 x 2160
Aspect Ratio
16:9
Type
E-LED BLU
Brightness(nit)
300nit
Contrast Ratio
1200:1
Color Depth
1.07G (8bits + FRC )
Color Gamut
72%
Viewing Angle(H/V)
178°/178°
Operation Hours
24/7
Response Time
8ms
Screen Orientation
Portrait

System

OS
Android 9.0
CPU
ARM Quad Core Cortex-A53 1.5G
GPU
Arm Mali-G52 2EE MC1
DDR
DDR 2GB
ROM
16GB EMMC
Language
Chinese / English

Special

Cloud Advertising Distribution System
Optional
Cloud Splice System
Optional
Smart Monitoring System Cloud
Optional / CetusMSC
HDR
Yes
Open API Control Command
Yes
Open RS232 Control Command
N/A
Fail Over Support
Yes

Connectivity

Input
USB2.0 x 2 , Ethernet (RJ45) x 1
Output
N/A

Network connection

Wifi or LAN
Yes
3G/4G connection
Optional

Speaker

Build in speaker
Yes
Line-out Suppoert
Yes
BT Speaker Support
Yes

Physical

IP rating
IP5X (Front Panel)
Glass
Physics Tempered Glass
Shell
Metal
Standard Color
Black
Dimensions(L/W/D)
1920 x 766 x 45.5mm
VESA Mount
N/A
Net Weight
74kg
Packing Dimensions(W/H/D)
1970 x 886 x 182mm
20GP container capacity (pcs)
56
40GP container capacity (pcs)
122

Operation

Working environment
Indoor
Operation Temperature (ambient temp.)
0℃ to +40℃
Operation Humidity
10% to 80%
Storage Temperature
-10℃ to +60℃
Storage Humidity
10% to 80%

Power

Power Supply
AC 110 / 220V , 50/60Hz
Power Type
Built-In Power
Standby Power consumption
<0.5W
Max power concumption
135W

Accessories

Basic
Power cord / Remote Control / AAA batteries x 2 / Wifi antenna / User manual(Electionic version)

Download

BBC5522B-AA-03_datasheet_Ver1.0

784KB | 03/06/2024
