GEEPHON’S SMART NARROW BEZEL DISPLAY
BDC SERIES
BDC series of Narrow Bezel Display is a type of DlD (Digital Information Display)
Utrl-Narrow Bezel Display
with the super narrow bezel feature of 4mm, you could combine multiplescreens for amazing display results.

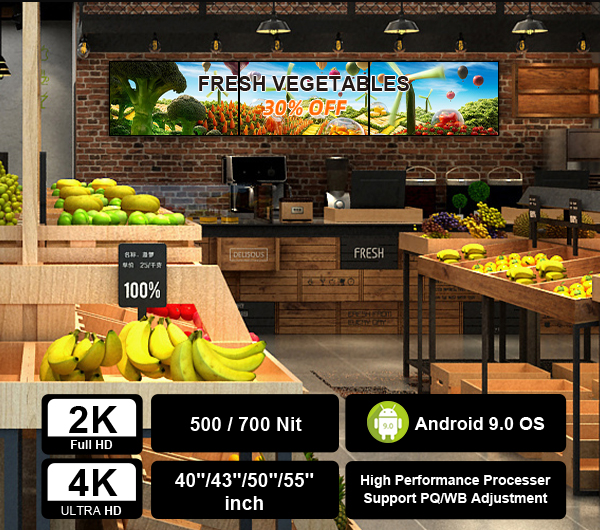

GVision Optimal Visual Picture Quality
The series is equipped with the high performance image processor. Resolution 2K/4K guarantees true color expression. High resolution is essential for reading text up close andalso produces the best results when displaying video.
And support picture quality adjustment and white balance adjustment functions.

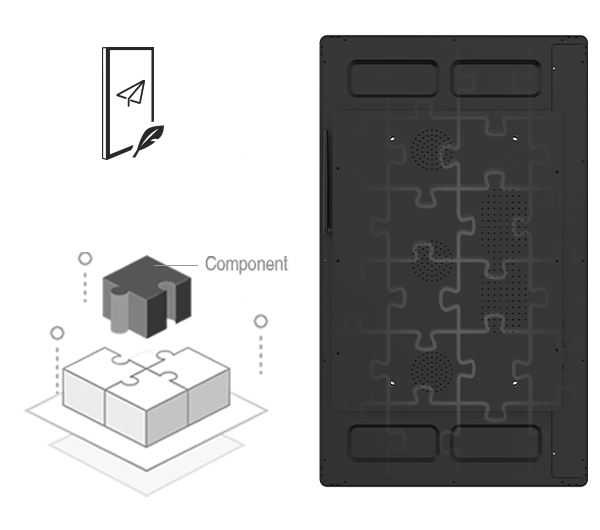

GComponent Light weight Design
Modularization design of components for easy maintenance, easy field removal and replacement ofdamaged devices.
Portrait / Landscape
Highly flexible digital screen that can be displayed in either portrait or landscape display orientation.Choose what type of display works best for your business. A comparison between portrait and landscape monitors allow you to identify which digital signage screens work best for your customersand deliver the message that you are trying to convey.
Super Narrow Bezel Design
Neat and adaptable in any applications. With a super narrow bezel of 4mm, we aim tomake it narrower, thinner and lighter.
It is able to be combined with several screens together to make a bigger display according to your preference.
Only an 11mm image gap between displays on video wall.
Only 4mm Narrow Equal bezel

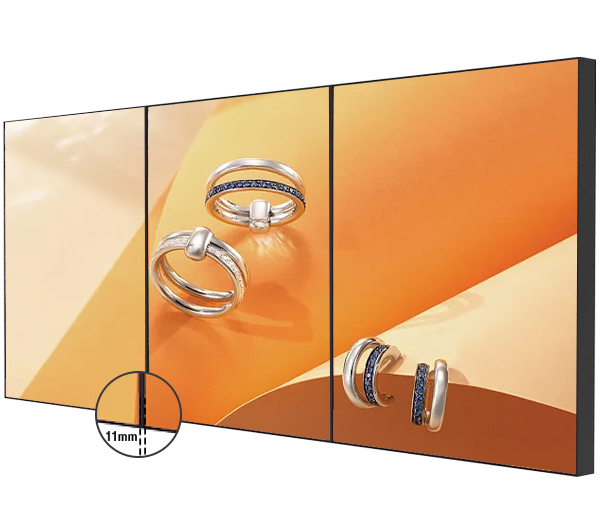

Video Wall Mode
Freely splicing and combining to form a video wall, 11mm image toimage gap between displays on video wall.
GPlay Convenient U-disk
Automatic content copying, loop playback.
Insert the U disk, automatically copy the contents of the U-disk to the device, and play it automatically. Automatic playback is realized when booted, no additional operation is required.
Fail Over System
The Fail Overrm system can automatically start playing the pictures and videos pre-setting on the device,when the HDMl input fails.
So that the machine can continue to display stably then the Fail Over system will automatically report to the monitoring system, then the team can maintain the device.Make sure our displays are never down.
All-in-One Signage Solution
40inch
878.112 x 485.352mm
1920 x 1080
16:9
D-LED BLU
700nit
5000:1
16.7M
72%

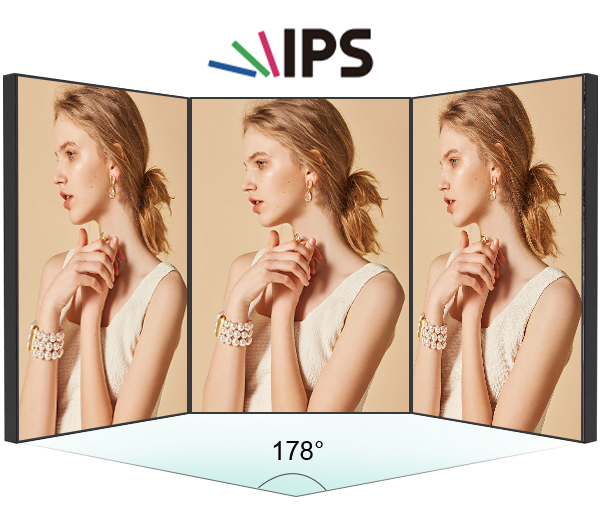

178°/178°
24/7
9.5ms
Portrait or Landscape
Android 9.0
ARM Quad Core Cortex-A53 1.5G
Arm Mali-G52 2EE MC1
DDR 2GB
16GB EMMC
Chinese/English
Optional
Optional
Optional / CetusMSC
Yes
Yes
Yes
Yes
USB2.0 x 2, HDMI IN x 2, Ethernet(RJ45) x 2, RS232(RJ45) x 1, IR in x 1, Sensor x 1
HDMI Out x 1, Audio out x 1
Yes
Optional
N/A
Yes
Yes
IP5X (Front Panel)
N/A
Metal
Black
5.5mm(L/R) , 6.5mm(T/B)
893 x 500.8 x 94.1mm
500 x 300mm
9.5kg
1033 x 651 x 308mm
240 pcs
504 pcs
Indoor
0℃ to +40℃
10% to 80%
-10℃ to +60℃
10% to 80%
AC 110 /220V,50/60Hz
Built-In Power
<0.5W
100W
Power cord / Remote Control / AAA batteries x 2 / Wifi antenna / User manual(Electionic version)
