BOB6523A-AA-40

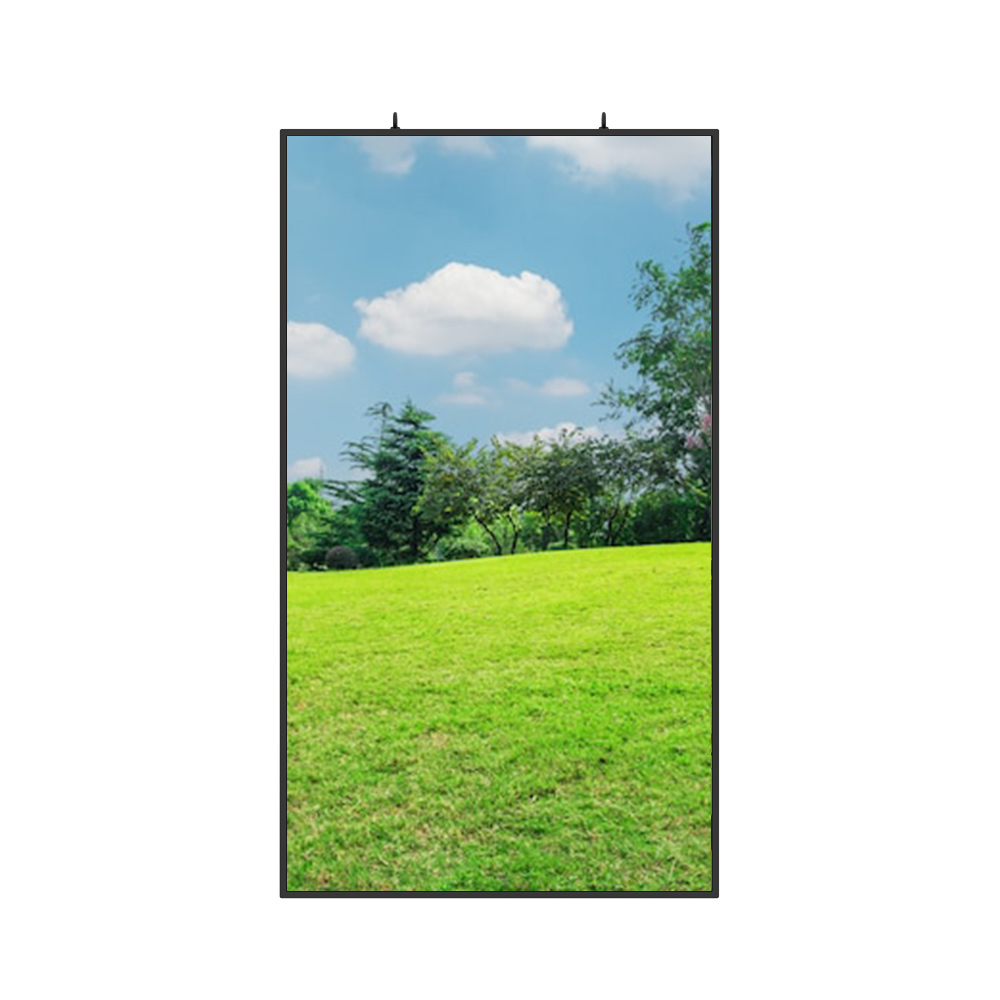

65inch 4000nit High Brightness Open Frame

Rating

49"55"65"75"86"

Open Frame BOB series

The Open Frame B0B series draws inspiration from the Omni-channel concept, offering clients a customizable design to suit semi-outdoor or full outdoor displays as per their specific requirements. This revolutionary combination of GBright^TM ultra-high brightness, vibrant colors, and GDynamic^TMlocal dimming technology can save up to 45% of energy. Additionally,the GComponent^TM design,known for its space-saving and Eco-friendly features,ensures adaptability across various applications, along with easy installation, cost-effectiveness, andan extended screen lifespan.

GBright^TMHigh Brightness & Excellent Visibility & Smart Light Sensor

Resolution 2K/4K guarantees true color expression.

You would not “Miss a Thing” with 4500nit highbrightness, which guarantees to deliver excellent picturequality at your shop window,even in direct sunlight.

GBright^TM High Brightness & Excellent Visibility GSunshine^TMTechnology & Smart Light Sensor

Enhanced brightness, color, and color saturation under direct-sunlightto ensure that the picture quality remains great.

SIGNAGE WITH LDM TECHNOLOGY

Energy savings of up to 45% can be achieved at the same brightness.

Contrast ratio up to 450000:1

Compared with traditional digital signageproducts, Geephon ECO DIGITAL SIGNAGEproducts not only have ultra-high displaybrightness, but also ultra-low power

GComponent^TM Lightweight Design

Modularization design of components for easy maintenance, easy fieldremoval and replacement of damaged devices.

Advanced design concept makes the product thinner and lighter. Made of nigh-strengthaluminum alloy material, the product is stronger and greatly reduces weight, easy toinstall and transport.

Gallery

1 / 1

All Spec Print

General

Screen Size
65inch
Screen Active Area
1428.48 x 803.52mm
Resolution
1920 x 1080
Aspect Ratio
16:9
Type
D-LED BLU
Brightness(nit)
4000nit
Contrast Ratio
4000:1
Dynamic CR
Up to 400000:1
Color Depth
16.7M
Color Gamut
72%
Viewing Angle(H/V)
178°/178°
Operation Hours
24/7
Response Time
8ms
Screen Orientation
Portrait or Landscape

System

OS
N/A
CPU
N/A
GPU
N/A
DDR
N/A
ROM
N/A
Language
Chinese/English

Special

Cloud Advertising Distribution System
N/A
Cloud Splice System
N/A
Smart Monitoring System Cloud
N/A
HDMI Loop
N/A
Ethernet Loop
N/A
Fanless Design
N/A
Dynamic Energy Saving
Yes
HDR
Yes
Local Dimming
Yes
Direct Sunlight Design
Yes
Open API Control Command
N/A
Open RS232 Control Command
Yes
Fail Over Support
N/A

Connectivity

Input
USB2.0 x 1 ,HDMI IN x 1 ,RS232（RJ45） x 1 ,IR in x 1 ,Sensor x 1
Output
Audio out x 1

Network connection

Wifi or LAN
N/A
3G/4G connection
N/A

Speaker

Build in speaker
N/A
Line-out Suppoert
Yes
BT Speaker Support
N/A

Thermal management

Smart Backlight Control
N/A
Smart Temperature Control
N/A
Smart Fans Control
N/A
Overheating protection
N/A

Physical

IP rating
IP5X （Front Panel）
Glass
N/A
Shell
Aluminum
Standard Color
Black
Bezel width(T/L/R/B)
10mm
Dimensions(L/W/D)
1450.88 x 826.22 x 56.85mm
VESA Mount
400 x 400mm
Net Weight
24.9 kg
Packing Dimensions(W/H/D)
1611 x 978 x 180mm
20GP container capacity (pcs)
72 PCS
40GP container capacity (pcs)
168 PCS

Operation

Working environment
Indoor window facing
Auto Brightness control
N/A
Operation Temperature (ambient temp.)
0℃ to +40℃ (Direct Sunlight) 0℃ to +50℃ (w/o Direct Sunlight)
Operation Humidity
10% to 80%
Storage Temperature
-10℃ to +60℃
Storage Humidity
10% to 80%

Power

Power Supply
AC 110 /220V,50/60Hz
Power Type
Built-In Power
Standby Power consumption
<0.5W
Max power concumption
780W（Brightness:4000nit）

Accessories

Basic
User manual（Electionic version）

Download

BOB6523A-AA-40_datasheet_Ver1.0

453KB | 20/05/2024
