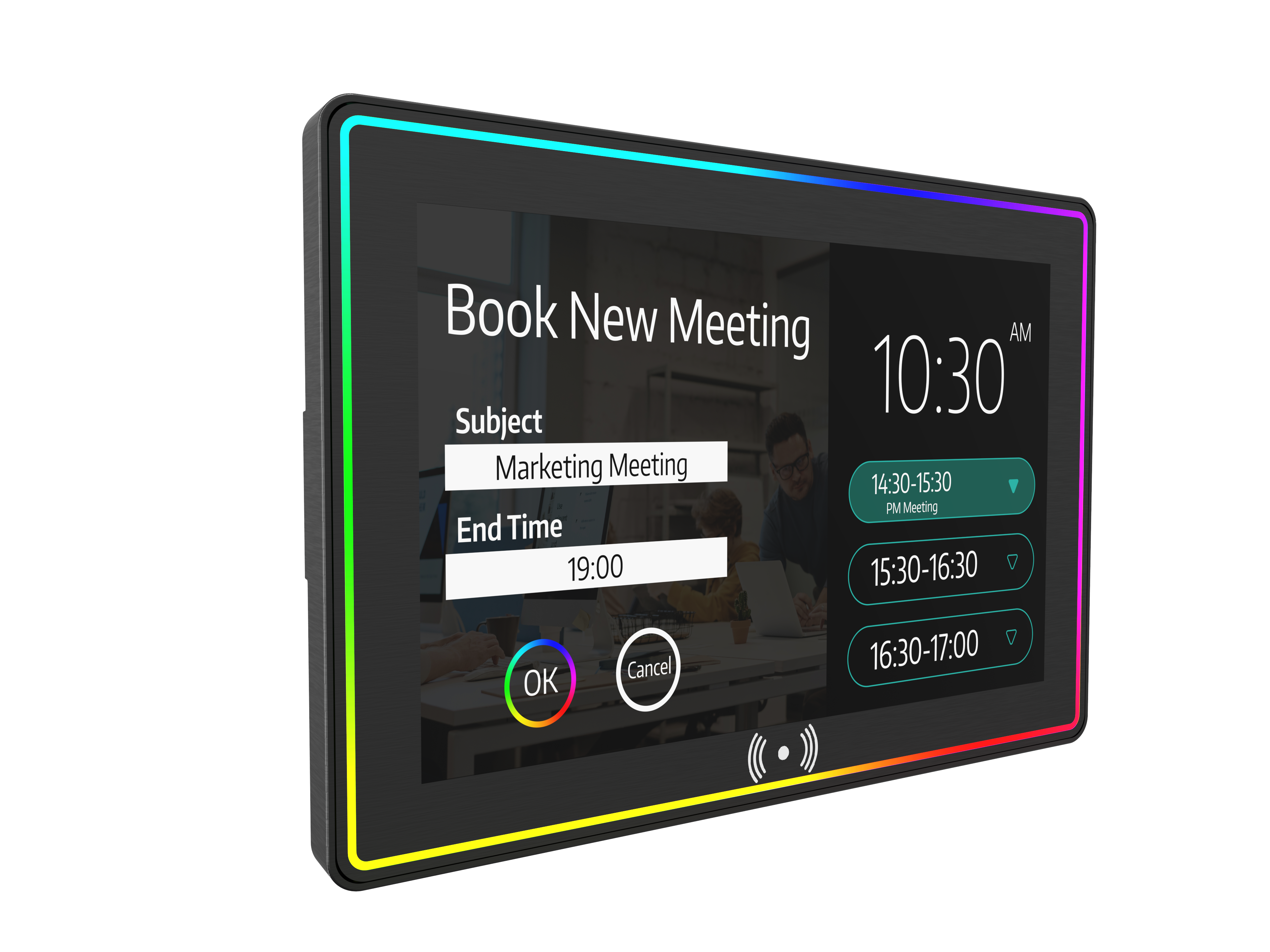

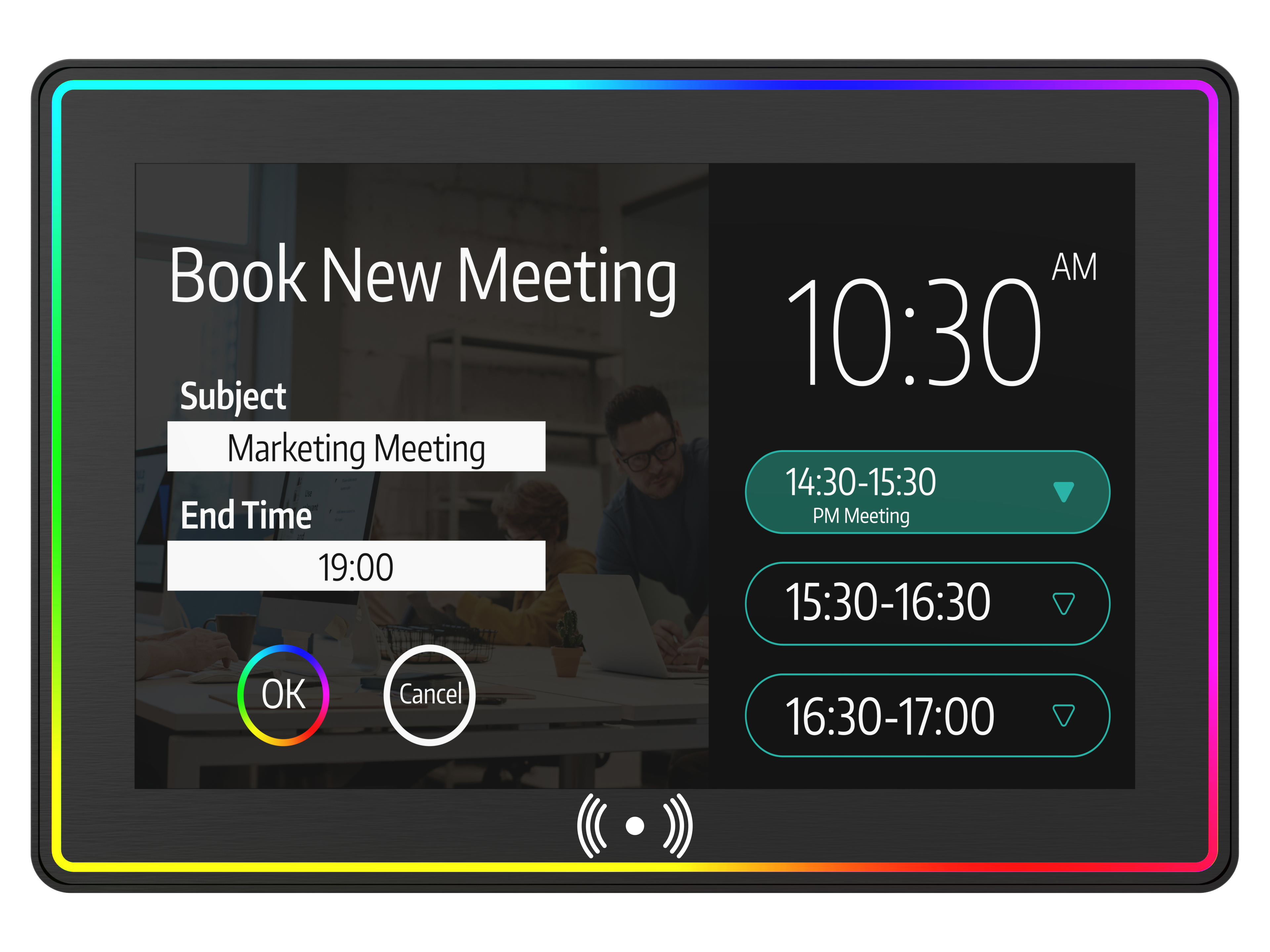

10inch RoomPad

All Spec Print

General

• Screen Size

  10.1inch

• Screen Active Area

  216.96 x 135.6mm

• Resolution

  1280 x 800

• Type

  60Hz E-LED BLU

• Brightness(nit)

  500nit

• Contrast Ratio

  1000:1

• Color Depth

  16.7M

• Color Gamut

  50%

• Viewing Angle(H/V)

  160°(H) x 160°(V)(CR≥10)

• Operation Hours

  24/7

• Response Time

  30ms (Typ)

• Screen Orientation

  Landscape/ Portrait

System

• OS

  Android 9.0

• CPU

  ARM Quad Core Cortex-A53 1.5G

• GPU

  Arm Mali-G52 2EE MC1

• DDR

  DDR 2GB

• ROM

  16GB EMMC

• Language

  Chinese/English

Special

• Cloud Advertising Distribution System

  Optional

Connectivity

• Input

  PogoPin(USB+RS232)*3, Ethernet(RJ45)*1, USB2.0*1, DC In*1, Type-C*1(Only Power, DC 12V Input)

• Output

  Audio out x 1

Network connection

• Wifi or LAN

  Yes

• 3G/4G connection

  N/A

Speaker

• Build in speaker

  Yes

Physical

• Glass

  Physics Tempered Glass

• Standard Color

  Black

• Dimensions(L/W/D)

  260.4 x 179 x 28.4mm

Operation

• Working environment

  Indoor

• Operation Temperature (ambient temp.)

  0°C ~ +40°C(Direct Sunlight)

• Storage Temperature

  -10℃ to +60℃

Power

• Power Supply

  12V DC

• Max power concumption

  20W

Accessories

• Basic

  Power Adaptor x 1
