37inch 700nit Stretched Display

Features Gallery Specs Download

Enquire to Buy

BSC3723A-AA-07

37inch 700nit Stretched Display

Rating

29"37"48"59"88"

GEEPHON SMART STRETCHED DISPLAY

BSC SERIES

Smart stretched displays is ideal for retail product display. With the splicing feature, it’s able to display products any way you want.Widely used in supermarkets,shops,shopping malls, banks, transportation, metro,bus, hotel, government places,etc

GVision Optimal Visua Picture Quality

The series is equipped with the high performance image processor. Resolution 2K/4K guarantees true color expression. High resolution is essential for reading text up close and also produces the best results when displaying video.

And support picture quality adjustment and white balance adjustment functions.

GComponent Lightweight Design

Modularization design of components for easy maintenance, easy field removal and replacement of damaged devices.

Brightness up to 700 nit

It provides 700 nits of brightness in indoor scenes, which canfully meet the needs of various applications and providecustomers with a great visual experience.

Portrait / Landscape

Horizontal and vertical screen intelligent switching adapt to different installation needs

Fail Over system

The Fail Over system can automatically start playingthe pictures and videos pre-setting on the device,when the HDMl input fails.

So that the machine cancontinue to display stablythen the Fail Over system will automaticallyreport to the monitoringsystem, then the teamcan maintain the device.Make sure our displaysare never down.

All-in-One Signage Solution

Support CMS&MSC
Support SDK/Open AP
Support OTA update/upgrade function

SDK/OPEN APIRS232 CONTROL

The product supports SDK development and provides OpenAPlinterface(via RS232)to third-party companies for development and
docking.A strong R&D team supports and quarantees the needs ofpartners for in-depth customization.

Gallery

1 / 1

All Spec Print

General

Screen Size
37inch
Screen Active Area
904.32 x 254.34mm
Resolution
1920 x 540
Aspect Ratio
32:9
Type
E-LED BLU
Brightness (nit)
700nit
Contrast Ratio
4000:1
Color Depth
16.7M
Color Gamut
72%
Viewing Angle (H/V)
178°/178°
Operation Hours
24/7
Response Time
8ms
Screen Orientation
Portrait or Landscape

System

OS
Android 9.0
CPU
ARM Quad Core Cortex-A53 1.5G
GPU
Arm Mali-G52 2EE MC1
DDR
DDR 2GB
ROM
16GB EMMC
Language
Chinese/English

Special

Cloud Advertising Distribution System
Optional
Cloud Splice System
Optional
Smart Monitoring System Cloud
Optional / CetusMSC
HDR
Yes
Open API Control Command
Yes
Open RS232 Control Command
N/A
Fail Over Support
Yes

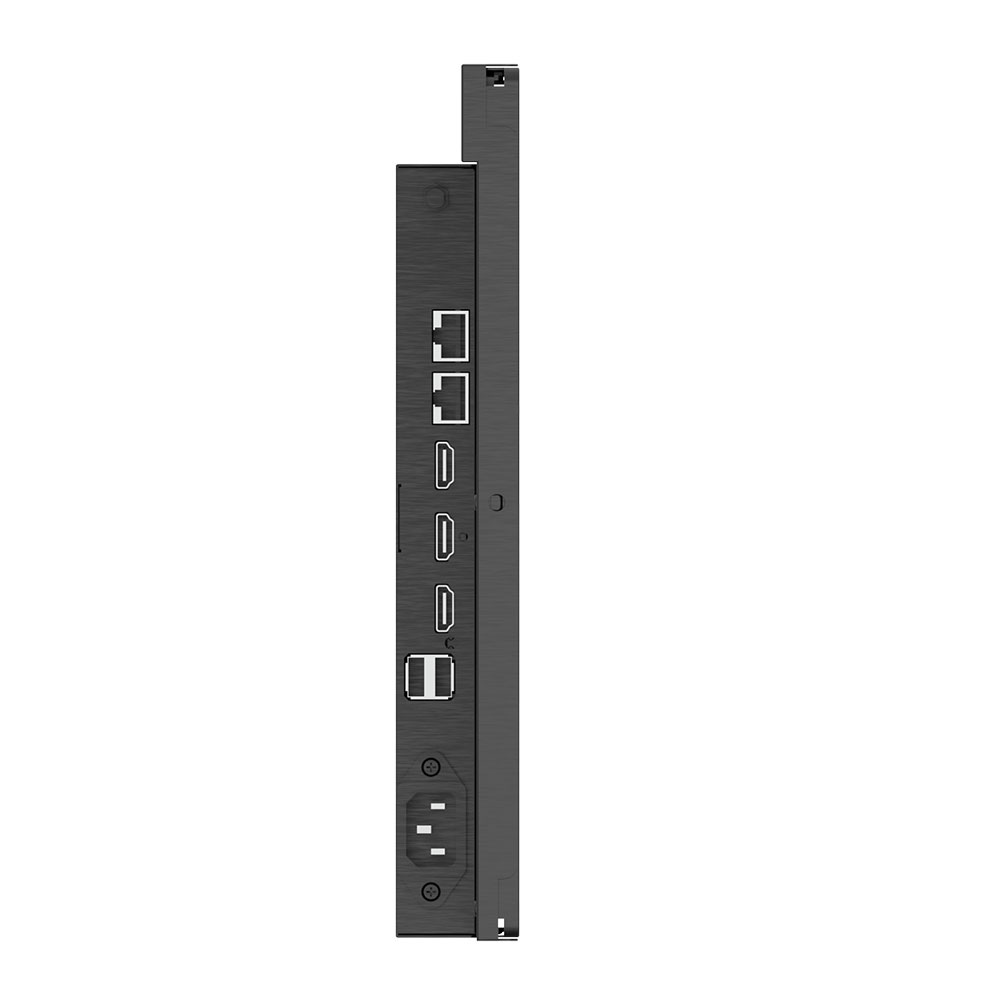

Connectivity

Input
USB2.0 x 2, HDMI IN x 2, Ethernet (RJ45)x 2
Output
HDMI Out x 1

Network connection

Wifi or LAN
Yes
3G/4G connection
Optional

Speaker

Build in speaker
Yes
Line-out Suppoert
N/A
BT Speaker Support
Yes

Physical

IP rating
IP5X (Front Panel)
Glass
N/A
Shell
Metal
Standard Color
Black
Bezel width
11mm(L/R), 14mm(T/B)
Dimensions (L/W/D)
927.7 x 283.8 x 40.9mm
VESA Mount
300 x 200mm
Net Weight
7.2kg
Packing Dimensions (W/H/D)
1020 x 405 x 170mm
20GP container capacity (pcs)
700 PCS
40GP container capacity (pcs)
1400 PCS

Operation

Working environment
Indoor
Operation Temperature (ambient temp.)
0℃ to +40℃
Operation Humidity
10% to 80%
Storage Temperature
-10℃ to +60℃
Storage Humidity
10% to 80%

Power

Power Supply
AC 110/220V, 50/60Hz
Power Type
Built-In Power
Standby Power consumption
<0.5W
Max power concumption
70W

Accessories

Basic
Power cord / Remote Control / AAA batteries x 2 / Wifi antenna / User manual（Electionic version）

Download

BSC3723A-AA-07_datasheet_Ver1.0

333KB | 18/10/2024
