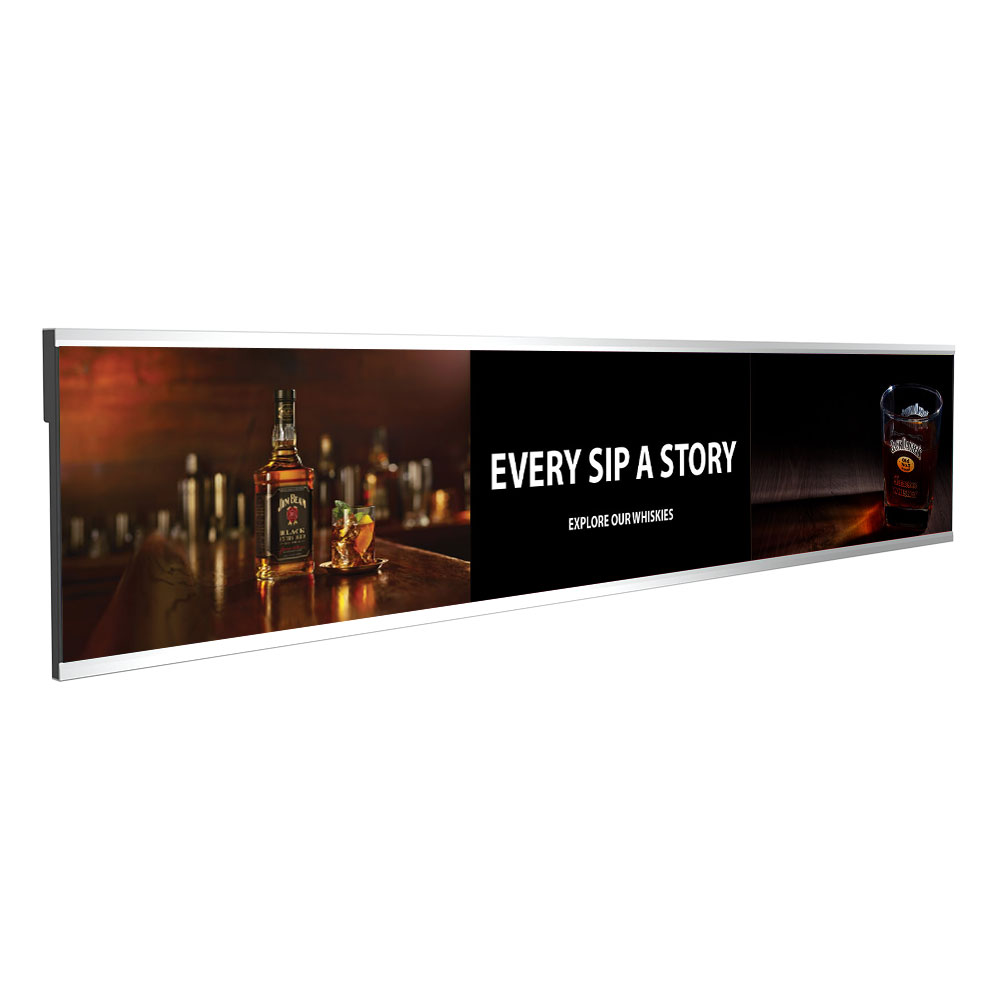

GEEPHON SMART STRETCHED DISPLAY
BSC SERIES

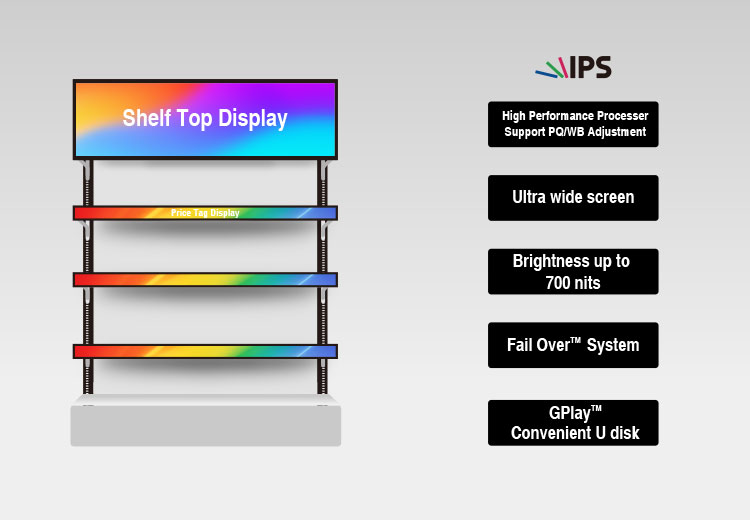

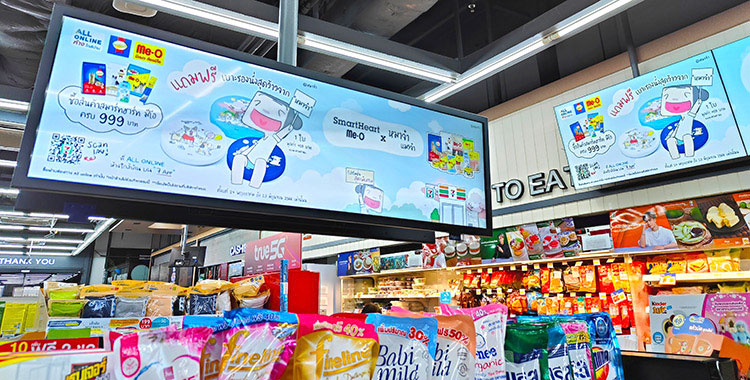

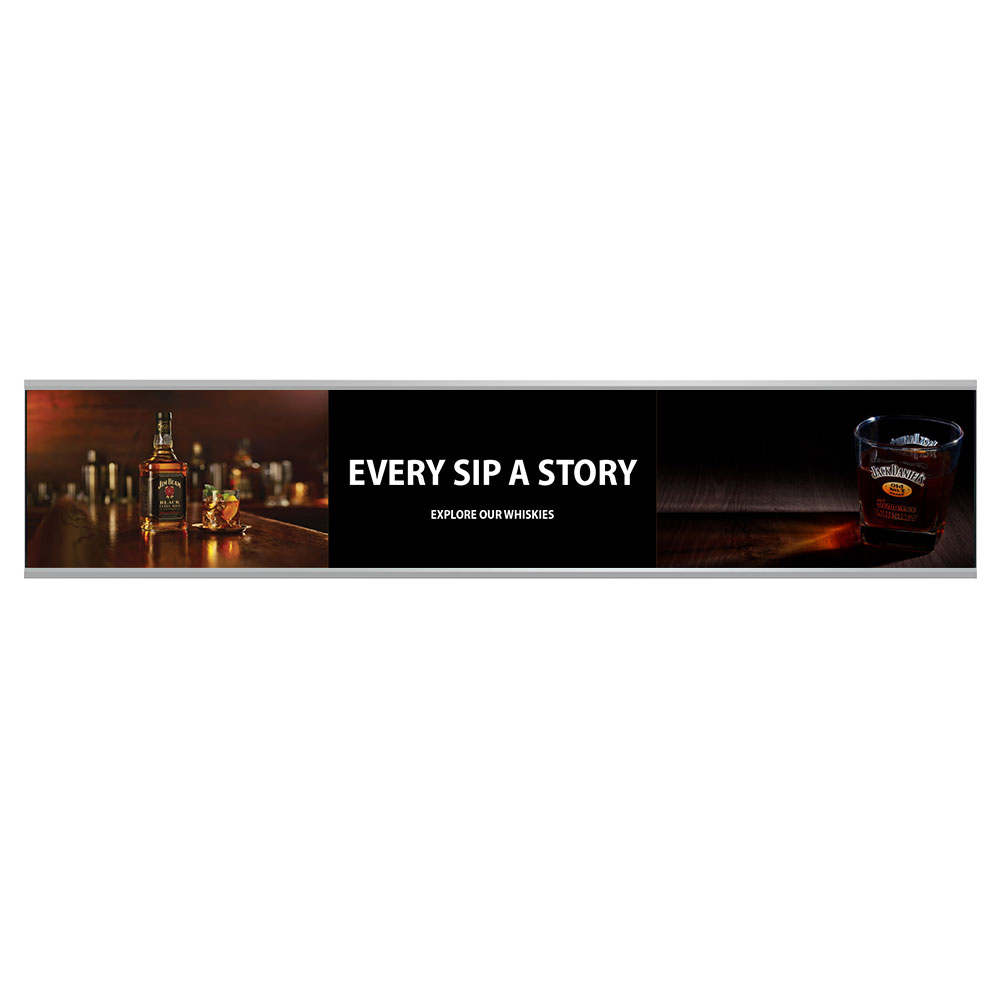

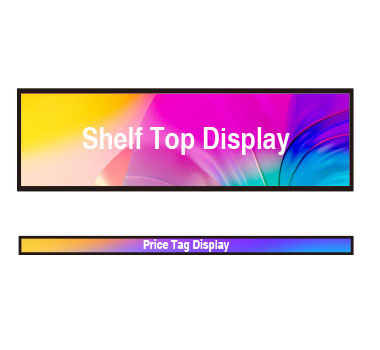

Smart stretched displays is ideal for retail product display. With the splicing feature, it’s able to display products any way you want.Widely used in supermarkets,shops,shopping malls, banks, transportation, metro,bus, hotel, government places,etc
GVision Optimal Visua Picture Quality
The series is equipped with the high performance image processor. Resolution 2K/4K guarantees true color expression. High resolution is essential for reading text up close and also produces the best results when displaying video.
And support picture quality adjustment and white balance adjustment functions.

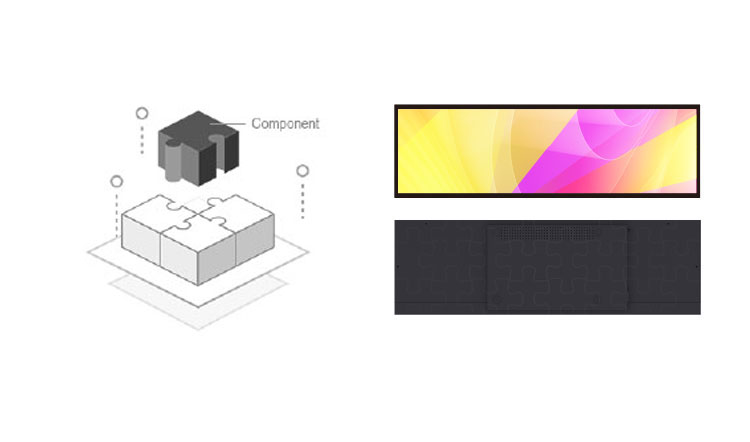

GComponent Lightweight Design
Modularization design of components for easy maintenance, easy field removal and replacement of damaged devices.

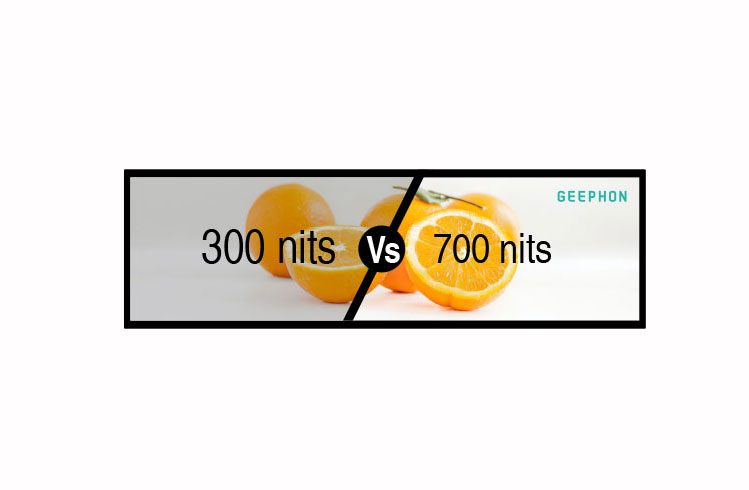

Brightness up to 700 nit
It provides 700 nits of brightness in indoor scenes, which canfully meet the needs of various applications and providecustomers with a great visual experience.

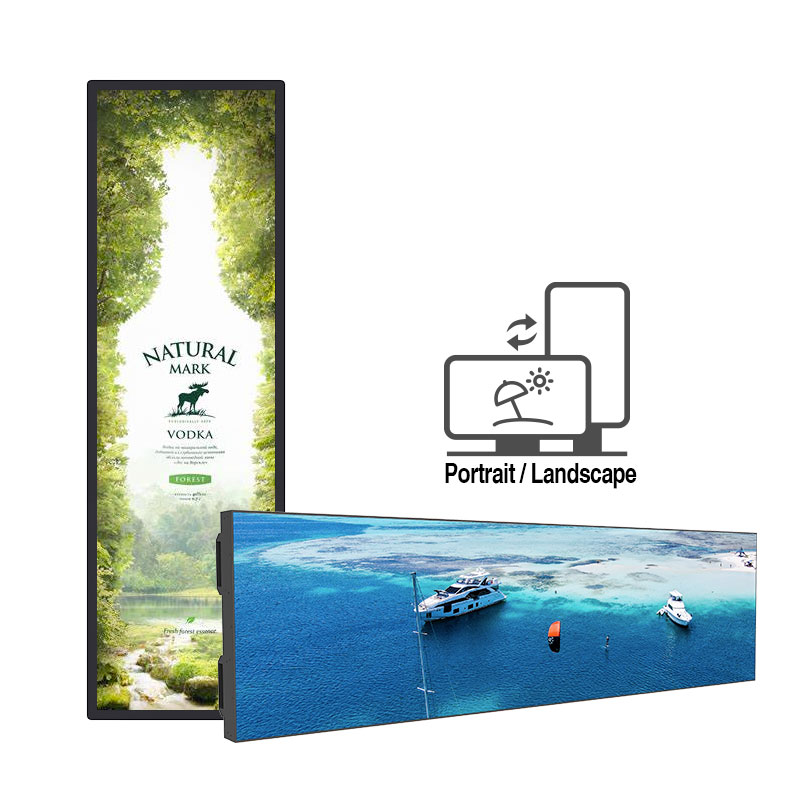

Portrait / Landscape
Horizontal and vertical screen intelligent switching adapt to different installation needs

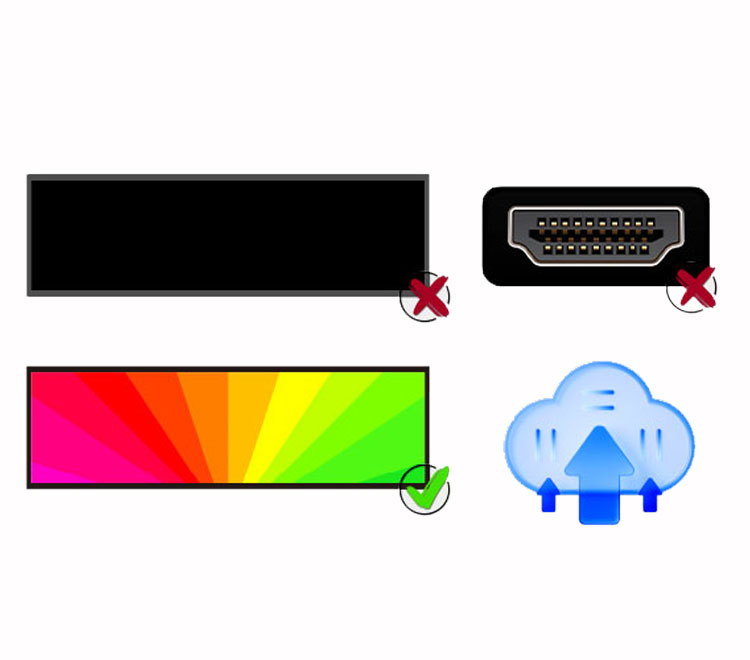

Fail Over system
The Fail Over system can automatically start playingthe pictures and videos pre-setting on the device,when the HDMl input fails.
So that the machine cancontinue to display stablythen the Fail Over system will automaticallyreport to the monitoringsystem, then the teamcan maintain the device.Make sure our displaysare never down.
All-in-One Signage Solution
SDK/OPEN APIRS232 CONTROL
The product supports SDK development and provides OpenAPlinterface(via RS232)to third-party companies for development and
docking.A strong R&D team supports and quarantees the needs ofpartners for in-depth customization.
This product is certified by the Federal Communications Commission (FCC), ensuring compliance with U.S. regulations for wireless devices. This certification guarantees that this product meets strict standards for safety, performance, and radio frequency emissions, making it suitable for use in the United States.
Gallery
47.6inch
1189.32 x 223.02mm
1920 x 360
48:9
E-LED BLU
700nit
1200:1
16.7M
72%
178°/178°
24/7
15ms
Portrait or Landscape
Android 9.0
ARM Quad Core Cortex-A53 1.5G
Arm Mali-G52 2EE MC1
DDR 2GB
16GB EMMC
Chinese/English
Optional
Optional
Optional / CetusMSC
Yes
Yes
N/A
Yes

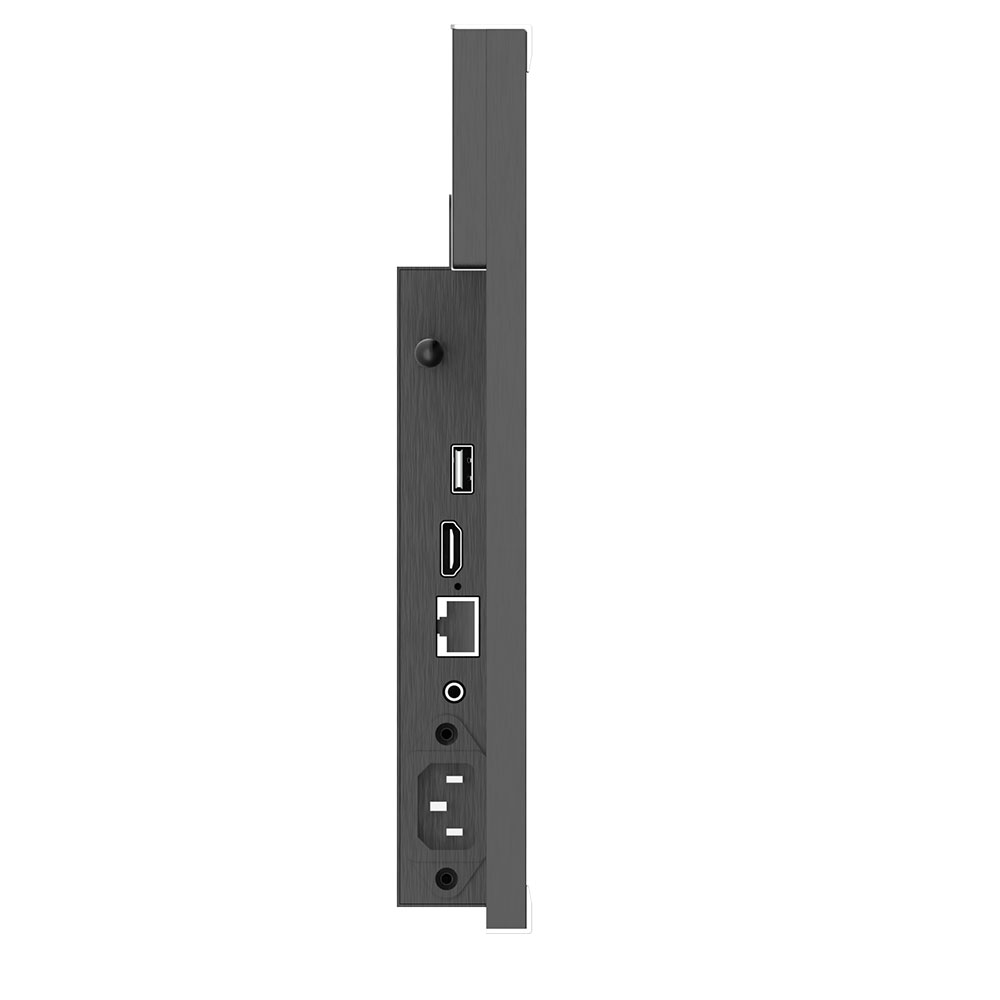

USB2.0 x 2, HDMI IN x 2, Ethernet (RJ45)x 2
HDMI Out x 1
Yes
Optional
Yes
N/A
Yes
IP5X (Front Panel)
N/A
Metal
Silver
6mm(L/R), 14.2mm(T/B)

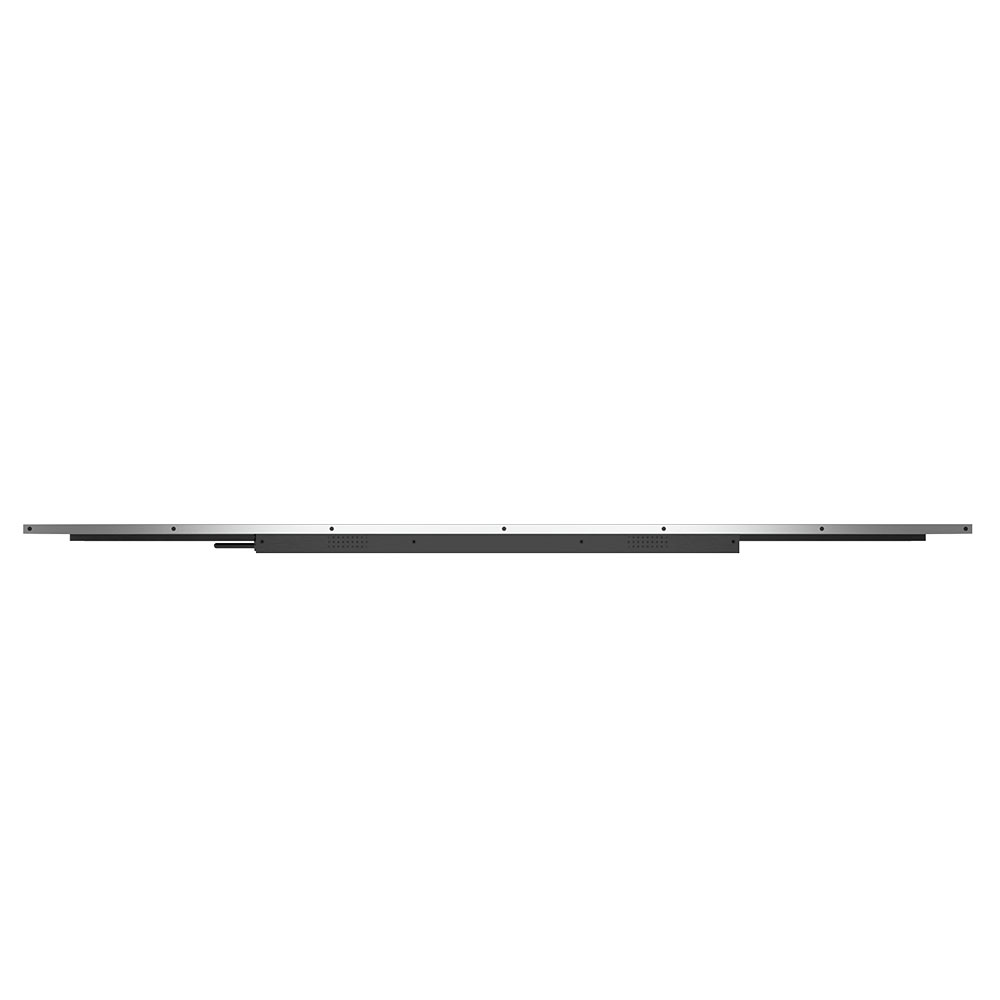

1201.44 x 251.42 x 37.4mm
300 x 100mm
7.15kg
1300 x 430 x 360mm
-
-
Indoor
0℃ to +40℃
10% to 80%
-10℃ to +60℃
10% to 80%
AC 110/220V, 50/60Hz
Built-In Power
<0.5W
105W
Power cord / Remote Control / AAA batteries x 2 / Wifi antenna / User manual（Electionic version）
